Git Internals Explained

🗃️ Objects

Git uses three main types of objects to store and manage your code:

• Commit
• Tree
• Blobs

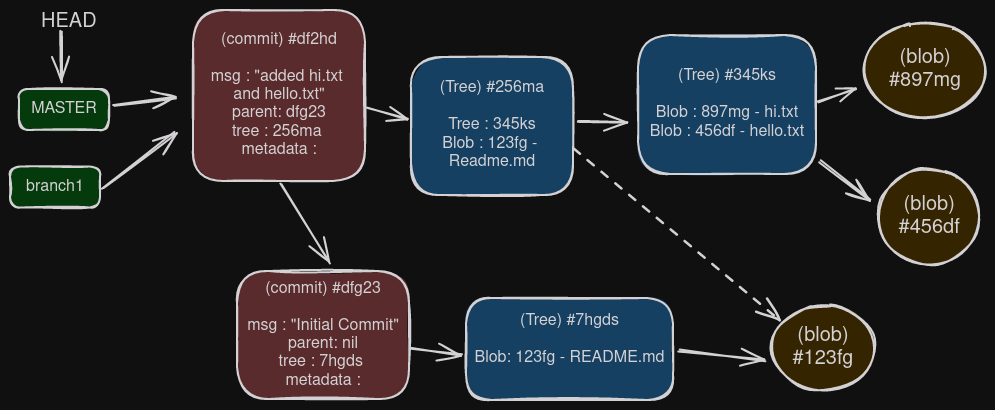

Red: commit object, Blue: tree object, Grey: blob object

📄 Blobs (Binary Large Objects)

What are blobs?

• Store the actual contents of files
• Contain full snapshots, not just differences
• Identified by unique SHA-1 hash (20 bytes = 40 hexadecimal characters)

Key characteristics:

• Content only: Unlike regular files that have metadata (creation date, permissions), blobs store only raw file content
• Immutable: Once created, a blob’s contents cannot be changed. Any modification creates a new blob with a different hash

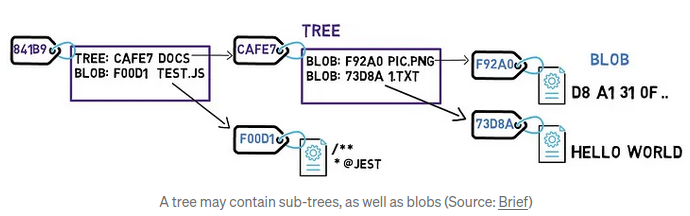

🌳 Trees

What are trees?

• Represent filesystem structure or directory listings
• Reference other trees (subdirectories) or blobs (files) by their hashes
• Each tree has its own unique SHA-1 hash

How they work:

• Trees can contain other trees, representing nested directories
• They maintain the structure and organization of your project

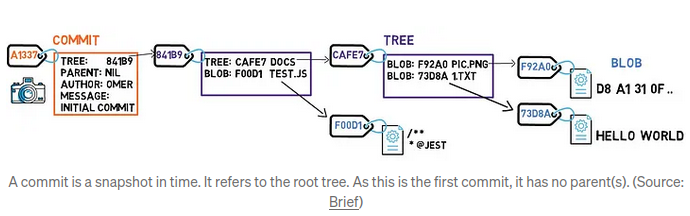

📝 Commits

What are commits?

• Represent a complete snapshot of your repository at a specific point in time
• Combine metadata with a pointer to the root tree

Commit contents:

• Committer information: Author details
• Timestamp: When the commit was created
• Commit message: Description of changes
• Parent pointers: References to previous commits (merge commits have multiple parents)
• Tree reference: Points to the root tree object

Important notes:

• Commits store entire snapshots, not just diffs from previous commits
• Identified by SHA-1 hash (same as shown in git log)

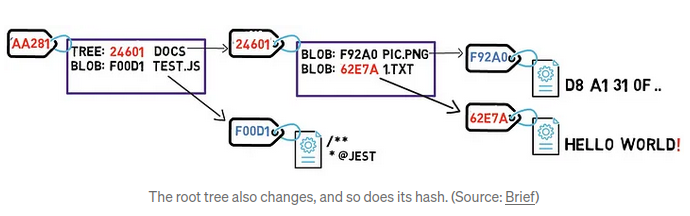

How changes propagate:

• Updating a file creates a new blob with different hash
• This changes the tree hash that contains the file
• Which changes the commit hash that references the tree

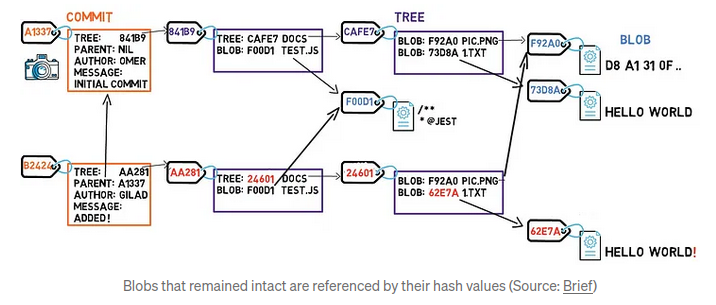

Efficient storage:

• Only modified files get new blobs
• Unchanged files are referenced, not duplicated
• New commits reference their parent commits

Hash uniqueness: Two different people creating identical files will have the same blob and tree hashes, but different commit hashes due to different author information and timestamps.

---

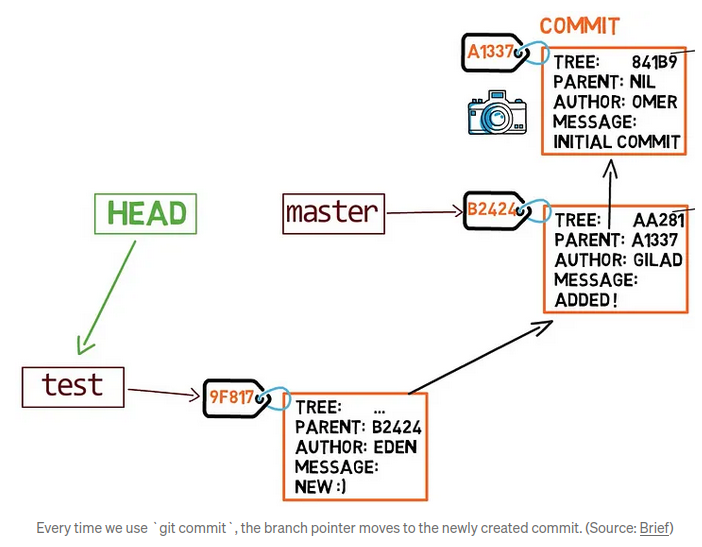

🌿 Branches

What are branches?

• Named references to specific commits
• Lightweight pointers that move as you create new commits

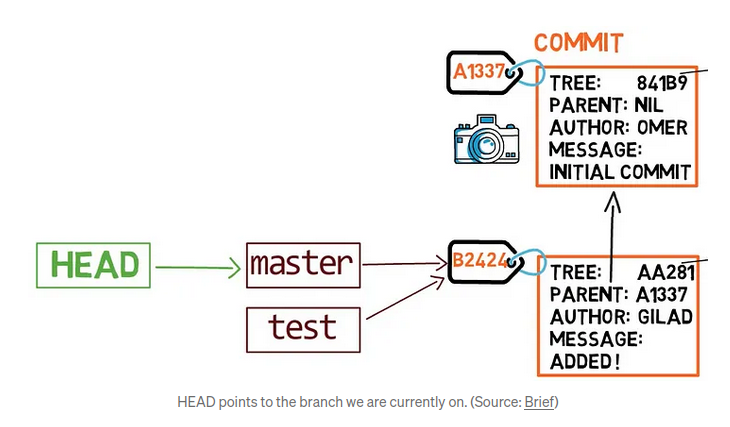

How branches work:

• HEAD defines your currently active branch
• git checkout moves HEAD pointer to that branch
• Creating commits on non-master branches updates that branch’s pointer

🔄 Changes and Workflow

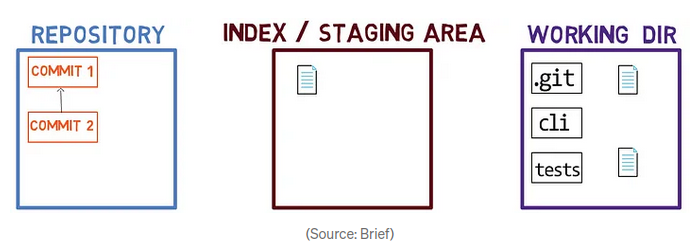

Repository structure:

• Repository: Collection of commits
• Working directory: Your .git folder plus all project files
• Staging area (index): Where changes are prepared before committing

File states:

• Tracked: Files present in previous commit or added to staging area
• Untracked: New files Git doesn’t know about yet

Changes are registered in the index (staging area) using git add.

📁 .git Directory Structure

The .git directory contains everything Git needs:

.git/
├── HEAD (file)
├── index (file)
├── objects/
│   ├── 11/
│   │   └── 8f108d76b16a058db9fcb385a5fd640b54e47a
│   └── [other hash folders...]
└── refs/
    └── heads/
        └── master (file)

Directory components:

• objects/: Stores all Git objects (blobs, trees, commits)
  • Subdivided by first two characters of hash for efficiency
• refs/: Directory for references
  • heads/: Contains branch files with commit hashes they point to
  • master: File containing hash of latest commit on master branch
• HEAD: Points to current active branch
  • Contains content like ref: refs/heads/master
• index: Represents the staging area

🛠️ Git Commands

Basic Object Inspection

# Get the type of object from hash
git cat-file -t

# Get the content of object from hash
git cat-file -p

Working with Hashes

Generate and store hashes:

# Get hash of string
echo "git is awesome" | git hash-object --stdin

# Get hash and store as object in Git database
echo "git is awesome" | git hash-object --stdin -w

This creates a blob object stored as:

objects/
└── 11/
    └── 8f108d76b16a058db9fcb385a5fd640b54e47a

Retrieve object information:

# Get file type of hash
git cat-file -t

# Get content of hash
git cat-file -p

# Save hash content to file
git cat-file -p  > hello.txt

Note: A new blob is created when you add something to staging area using git add.

Staging Operations

# Manually add blob to staging area
git update-index --add --cacheinfo 100644

This creates the index file.

Committing Process

# Create tree from current working directory
git write-tree

This returns the hash of the root tree, stored in the objects folder.

Inspect the tree:

# Check tree type and content
git cat-file -t
git cat-file -p

Create commit:

# Commit the tree
git commit-tree  -m "commit message" -p

Managing HEAD and Branches

Update branch pointer:

# Point master to latest commit
echo  > .git/refs/heads/master

Branch operations:

• Create branch: Add file in .git/refs/heads/ containing commit hash
• Switch branch: Change HEAD file content to ref: refs/heads/

🗜️ Compression

Git optimizes storage using zlib compression:

• Combines LZ77 and Huffman coding algorithms
• Significantly reduces repository size
• Maintains data integrity while saving space

📚 References

• Swimm - Git Internals Part 1
• Swimm - Git Internals Part 2

Understanding Git’s internal architecture helps you work more effectively with version control and troubleshoot issues when they arise.
